• Delivered in flat pack unassembled
  • 5 years warranty on all of our Trolleys

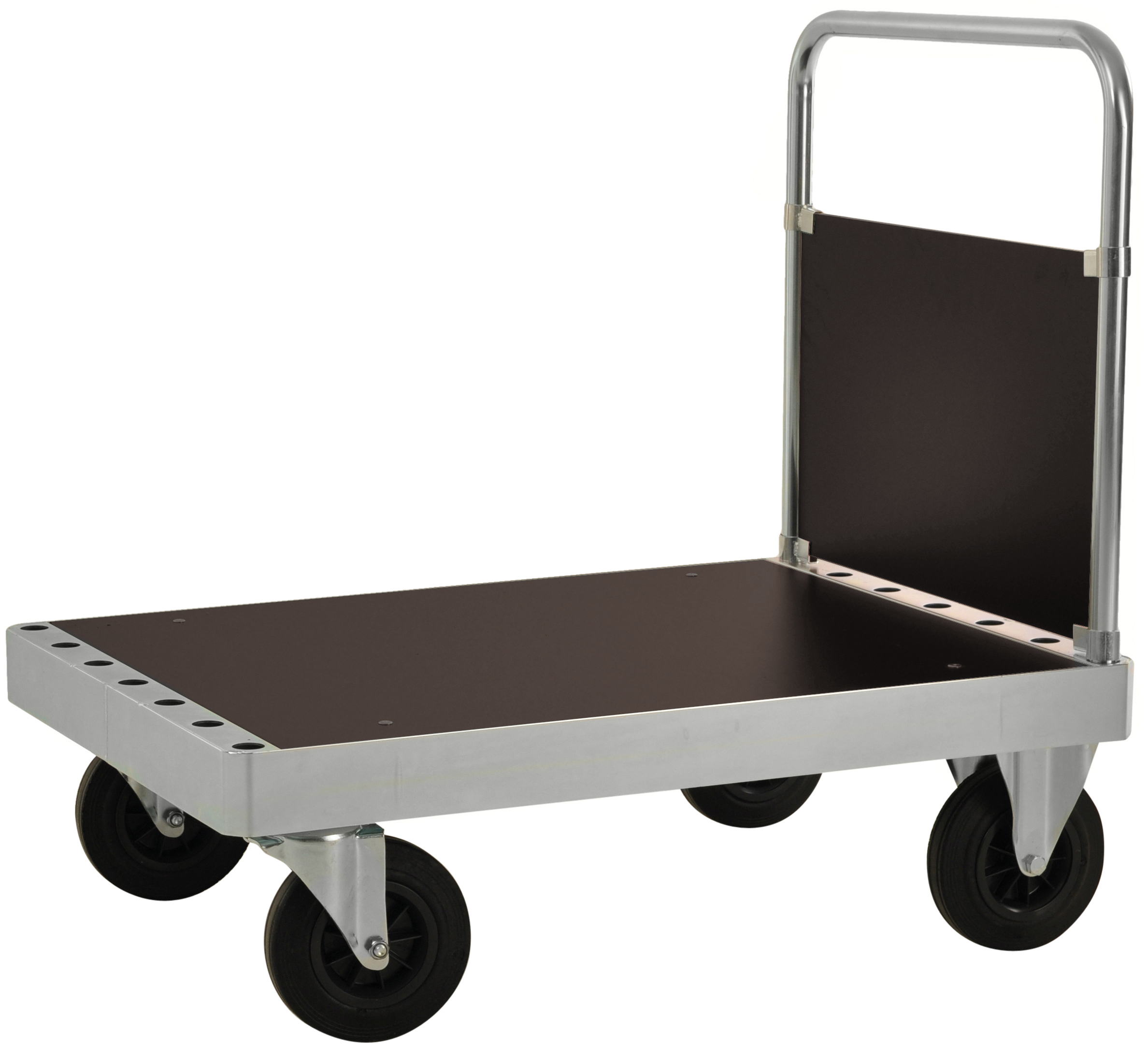

KM132-1 | Platform truck

Platform truck with one end panel in our thickest serie of platform trolleys. Available in several models. Works excellent in tougher enviroment when managing the item could be more demanding. Serie 100 also offers table trolley, shelf trolley, box trolley, end panel trolley and other variants of the platform trolley.

Electro galvanised with laminate shelf
Height to platform 300 mm
End panel in laminate, height 400 mm
Handles 30 mm steel pipe
2 fixed 2 swivel castors solid rubber 200 x 50 mm
Capacity: 800 kg (evenly distributed over the entire shelf)

In stock

42 pcs.

FIND YOUR DEALER
  • Construction
  • Logistic & Warehouse
  • Industry & Workshops

Variations

  ART.NO. Colour L x W X H (mm) Type of castors Braked castors Load (kg) Weight (kg) In stock
Platform truck KM132-1 KM132-1 Electro galvanised / MDF, black 900 x 600 x 960 2 fixed 2 swivel No 800 32 42
Platform truck KM132-1B KM132-1B Electro galvanised / MDF, black 900 x 600 x 960 2 fixed 2 swivel with brake Yes 800 32.5 42
Platform truck KM132-2 KM132-2 Electro galvanised / MDF, black 1000 x 700 x 960 2 fixed 2 swivel No 800 37 46
Platform truck KM132-2B KM132-2B Electro galvanised / MDF, black 1000 x 700 x 960 2 fixed 2 swivel with brake Yes 800 37.5 46
Platform truck KM132-3 KM132-3 Electro galvanised / MDF, black 1200 x 800 x 960 2 fixed 2 swivel No 800 41 30
Platform truck KM132-3B KM132-3B Electro galvanised / MDF, black 1200 x 800 x 960 2 fixed 2 swivel with brake Yes 800 41.5 30

Product information

  • Carton Dimensions - 915x610x345mm
  • Length - 900 mm
  • Width - 600 mm
  • Height - 960 mm
  • Static load - 800 kg
  • Freight volume - 0.19 m3
  • Gross weight - 32 kg
  • Net weight - 30.5 kg
  • Shelf dimensions (length) - 840 mm
  • Shelf dimensions (width) - 600 mm
  • Heigth to handle - 960 mm
  • Type of castors - 2 fixed 2 swivel
  • Castors diameter (mm) - 200

Documents

Castors

ART.NO. Description Diameter (mm)
3470PVR200P63 Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearing 200
3478PVR200P63 Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: solid rubber, black, roller bearin 200

Alternative castors

  ART.NO. Description Diameter (mm)
Replacement castors 200 mm KM142-4 KM142-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM142 KM142 Replacement castors 200 mm 200
Replacement castors 200 mm KM144 KM144 Replacement castors 200 mm 200
Replacement castors 200 mm KM143-4 KM143-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000 KM5000 Replacement castors 200 mm 200
Replacement castors 200 mm KM144-4 KM144-4 Replacement castors 200 mm 200
Replacement castors 200 mm KM6000 KM6000 Replacement castors 200 mm 200
Replacement castors 200 mm KM5000-4 KM5000-4 Replacement castors 200 mm 200
Replacement castors 260 mm KM141-4 KM141-4 Replacement castors 260 mm 260
Replacement castors 200 mm KM6000-4 KM6000-4 Replacement castors 200 mm 200
Replacement castors 260 mm KM141 KM141 Replacement castors 260 mm 260

Accessories

  ART.NO. Description Weight (kg)
Writing tablet KM145-L KM145-L Writing tablet 1.2
Tablet holder KM145-TH KM145-TH Tablet holder 1.3
